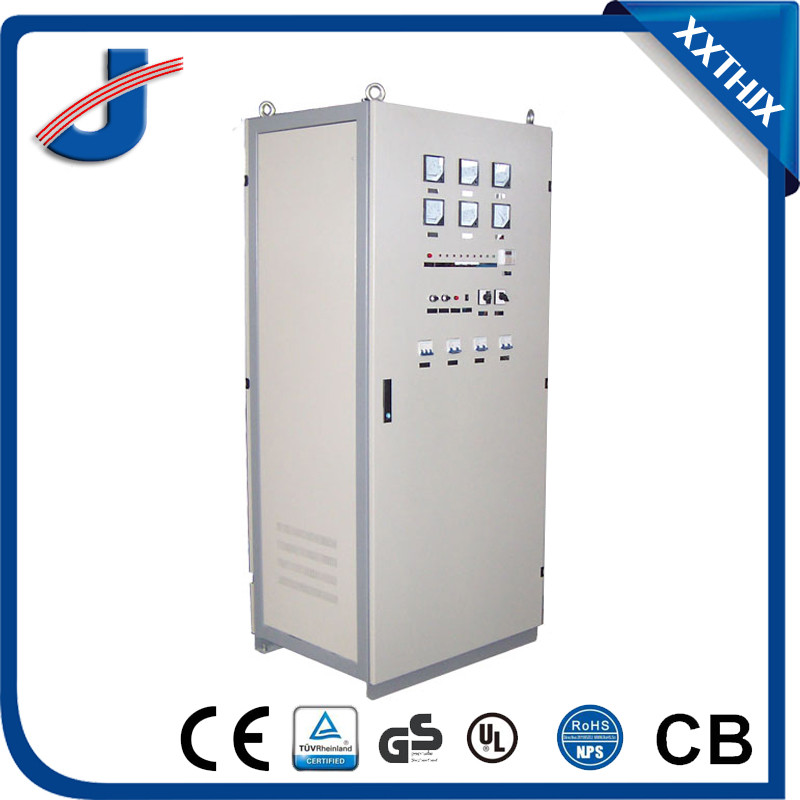

AC220V DC48V 300W Battery Charger and Discharger Equipment

  • AC220V DC48V 300W Battery Charger and Discharger Equipment
  • AC220V DC48V 300W Battery Charger and Discharger Equipment

AC220V DC48V 300W Battery Charger and Discharger Equipment

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW
    Delivery Time: 40-60 Days
    Packaging: Wooden box or carton
    Productivity: 50-200 units / month
    Brand: Taihang Jiaxin
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 50-200 units / month
    Certificate: ISO9001.CE
    HS Code: 8504401990101
    Port: Tianjin-by Sea,Shanghai-by Sea,Zhengzhou-by Air

Product Description

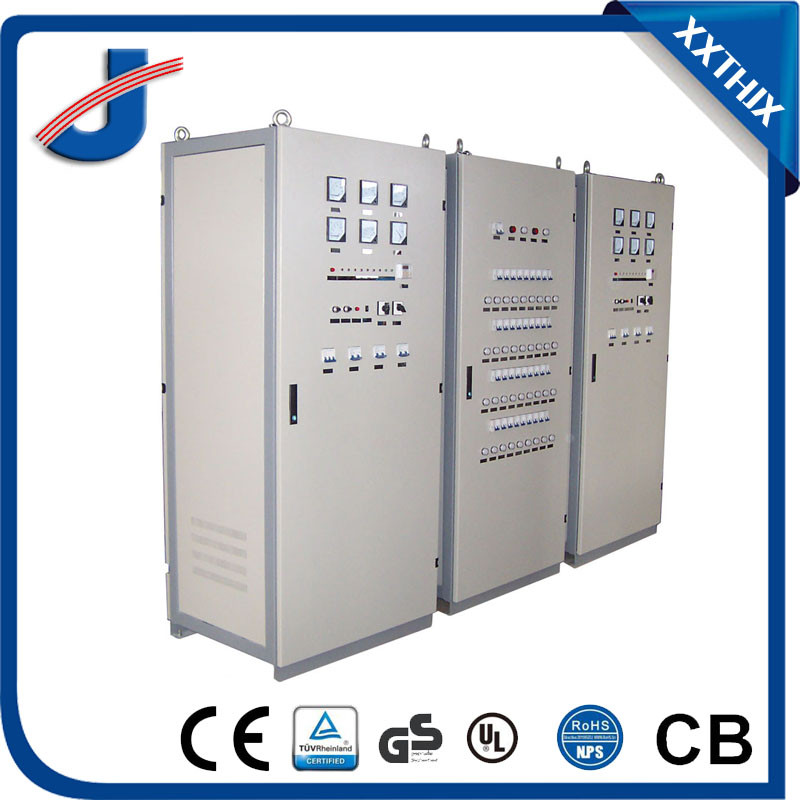

Panel Combination Solution

* Charging Panel: 1 pc; feed control & battery mounting cabinet: 1pc; control: 6 circuits, closing: 6 circuits, provided with lead acid battery with capacity of 65Ah and single group of battery with capacity of less than 65Ah. Can be equipped with AC distribution and metering.
* Charging Panel: 1 pc; feed control panel: 1pc; battery mounting cabinet: 1~2 pcs; control: 6 circuits, closing: 6 circuits, provided with lead acid battery with capacity of 100~200Ah and single group of battery with capacity of less than 100~200Ah.
* Charging Panel: 1 pc; feed control & battery mounting cabinet: 2 pcs; control: 2×6 circuits, closing: 2×6 circuits, provided with lead acid battery with capacity of 200~400Ah and single group of battery with capacity of less than 200~400Ah.
* The panel combination solution and configuration can be flexibly designed as per customers` requirements.

Sl. No.
Description
1
GENERAL DATA:

1.1
Installation
Indoor
1.2
Rectifier type
Thyristor controlled
1.3
Rated D.C. voltage
48V
110V
220V
330V
1.4
Rated output current
0-300A
1.5
High voltage insulation
2000V AC for 1 minute between input to output and input to ground
1.6
Insulation resistance
20MΩ with 500V D.C. for 1 minute
1.7
Cooling system
Self and natural air cooled or Forced cooled
1.8
Relative humidity
Up to 98%
1.9
Ambient temperature
45°C (Max) Ambient temperature
1.10
Noise level
65 dB(Max)
1.11
Altitude
1000m
2
A.C. INPUT

2.1
Voltage
415V
2.2
Phase
3 Phase
2.3
Frequency
50±10%
2.4
Input AC voltage variation
±10%
2.5
Power factor (Full range)
0.8
2.6
Efficiency (Full load)
85%
2.7
Charge characteristics
Constant voltage Current Limiting
2.8
Current limitation
110%
3
D.C OUTPUT
3.1
Voltage
48V±10%
110V±10%
220V±10%
330V±10%
3.2
Ripple voltage (Full load)
±3%
3.3
Charge modes (3 level)
Charge, Float charge, Boost charge
3.4
Float voltage (adjustable)
54~58V adjustable
118~124V
adjustable
236~248V adjustable
354~372V adjustable
3.5
Boost voltage (adjustable)
58~62V
adjustable
124~142V adjustable
248~284V adjustable
372~426V adjustable


General



Technology

PZDK Series of Storage Battery Charging and Discharging Devices

PZDK series of storage battery charging and discharging devices, by utilizing various of charge and discharge curves, provide charge & discharge and maintenance of storage battery such as LA, Ni-Cd, Ni-MH, Li-ion battery. It is applicable to aircraft battery, AGV(Automatic Guided Vehicles) electric vehicles, locomotives, railway vehicles, generator cars, battery formation, ships and marine petroleum platform and the other fields.



Xinxiang Taihang Jiaxin Electric Tech Co., Ltd

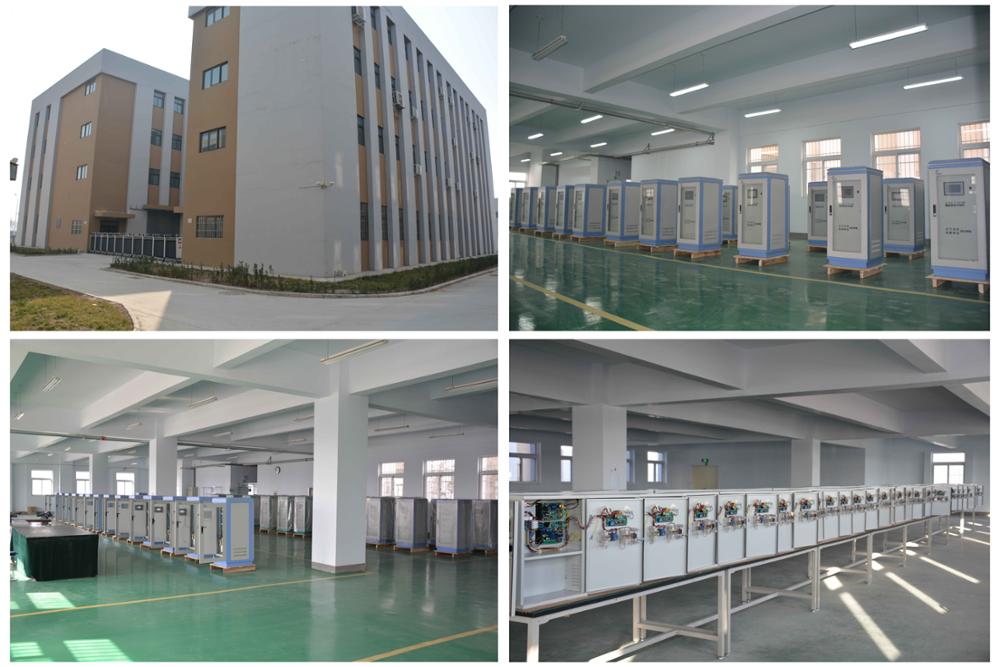

Established in 2003, Xinxiang Taihang Jiaxin Electrical Technology Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of power supply equipment and systems, storage battery charging and discharging devices, storage battery management system and detection instruments, power supply system for electric vehicles, and AGVs (Automatic Guided Vehicles). We are located in Xinxiang, He`nan province, with convenient transportation access.
